Cylindre électronique

Cylindre électronique

(0 review)

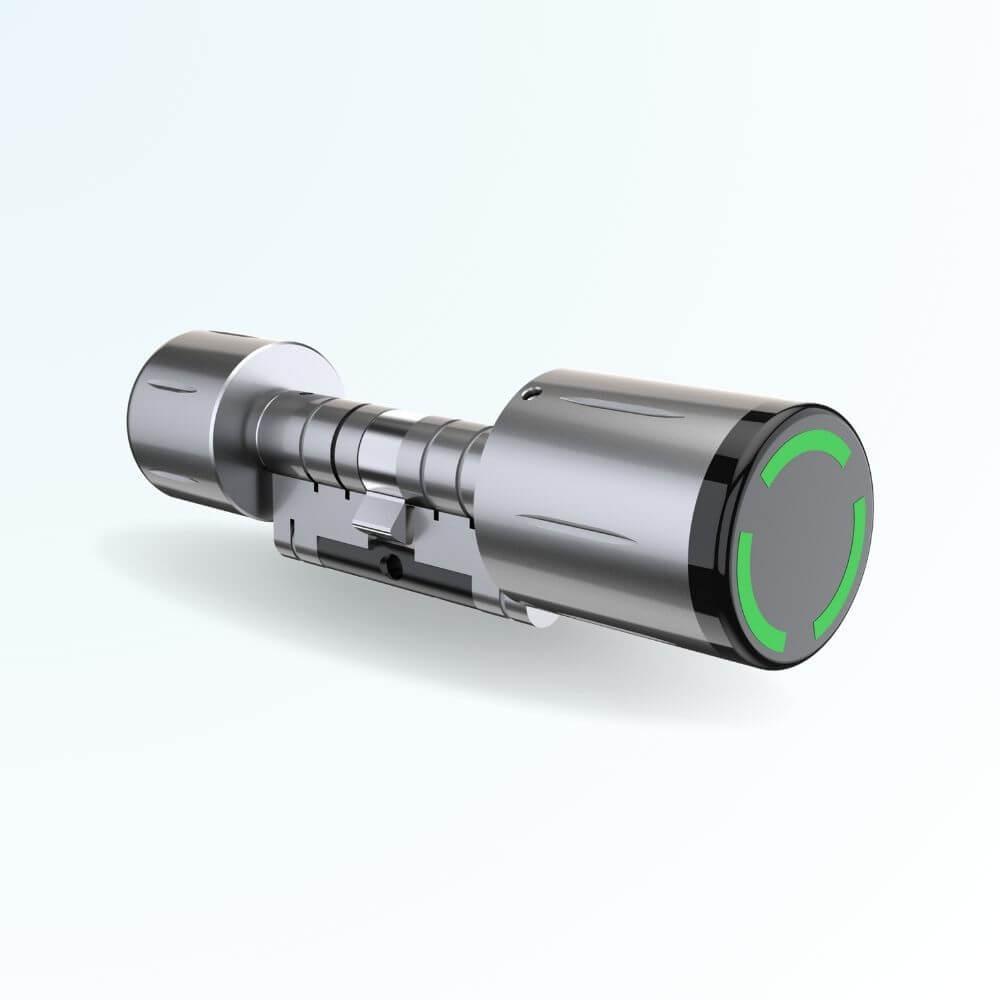

The electronic cylinder for bike shelters is a simple-to-install access control solution, compatible with existing ByCommute shelters. IP65-rated for weather resistance, it operates locally without internet (using badges or smartphones) and can also be remotely managed via a 4G/WiFi/Ethernet control box.

It’s designed for municipalities, businesses, schools, office campuses, sports facilities, and condominiums seeking secure access—without overhauling their entire infrastructure.

See also all our bike shelters and our enclosed bike shelters.

474.00 € 474.00 €
450.00 €

  • Variant
Request a quote
Terms and Conditions
All prices exclude transport and installation. Contact us for a quote.
Request a quote

They trust us

Discover our projects

#1 SIMPLE INSTALLATION

AACCESS CONTROLWITHOUT REDOING YOUR SITE

You add secure access to your bike shelters, without starting with a complete building system.

The cylinder is designed for sites that do not yet have existing access control. It follows a simple logic: equip quickly, operate easily, then upgrade if necessary.

  • Shelter compatible ByCommute:designed for our series of bike shelters.
  • European cylinder compatible:simple replacement of existing cylinder.
  • Gradual deployment:you can equip a shelter, then expand to the rest of the park.
#2 EXTÉRIEUR ÉTANCHE

PLANNED FOROUTDOOR USE

The cylinder is suitable for exposed environments: rain, temperature variations, daily operation.

You maintain a consistent access solution with an outdoor bike shelter, on public or private sites where reliability must remain simple to manage.

  • Indice IP65: adapté aux usages extérieurs.
  • Temperature:operation announced from -25°C to +65°C.
  • Intensive use:designed for regular access to communities and businesses.
#3 ACCESS MANAGEMENT

LOCALWITHOUT INTERNET, OPTIONAL REMOTE CONTROL

You can manage access on site using a badge/smartphone without a permanent Internet connection.

If you want to operate remotely, you add a network box (4G, WiFi or Ethernet) to administer your off-site access rights.

  • Openings:badge, smartphone and distance (with gateway).
  • Without Internet:local operation maintained on site.
  • Network option:4G / WiFi / Ethernet boxes for remote supervision.
#4 COMPATIBILITÉ BADGES

COMPATIBLEMIFARE, THE CRITERION YOUR SITES EXPECT

The cylinder is compatible with MIFARE RFID badges/cards (13.56 MHz), a key point for bike shelter access control projects.

Common brands you often encounter in the field:NXP (MIFARE), HID, STid, CDVI. Final compatibility depends on the exact badge type (chip/profile/encoding).

  • Standard visé: badges/cartes MIFARE 13,56 MHz.
  • Project approach:compatibility validation before global deployment.
  • Objective:avoid unpleasant surprises during operation.

SPÉCIFICATIONS TECHNIQUES

Technical data and uses to size your bike shelter access control.

COMPATIBILITÉ

  • Cylindre type européen
  • Compatible serrure à clé et code Locinox
  • Bicycle shelter compatible ByCommute
  • RFID MIFARE 13,56 MHz

OUVERTURE

  • Badge RFID
  • Smartphone (application)
  • Gestion à distance via boîtier réseau (option)
  • Local operation possible without Internet

ENVIRONNEMENT

  • IP65 protection rating
  • Température annoncée -25°C à +65°C
  • Convient à l'extérieur
  • Usage quotidien en site collectif/tertiaire

ALIMENTATION

  • 2 piles Lithium CR2
  • Autonomy announced up to 2 years depending on use
  • Autonome en énergie (hors boîtier réseau)
  • Alerte batterie faible

COMPATIBILITÉ PORTE & CYLINDRE

Points to be validated before deployment on one or more bike shelters.

Critère Valeur Project impact
Cylinder type Européen Simple replacement on most compatible configurations
Door thickness 35 à 100 mm Plage large adaptée à de nombreux portillons/portes d'abri
Axe cylindre / bord cadre ≥ 25 mm extérieur, ≥ 20 mm intérieur Point clé de validation avant commande
Montage Porte droite ou gauche, tirante ou poussante Souplesse d'intégration en rénovation
OPTIONS

PERSONNALISATION & ÉVOLUTIVITÉ

You start simple, then you add the useful bricks according to your operating level.

Boîtier réseau

Pilotage à distance via 4G, WiFi ou Ethernet.

Voir ByApp

Electric strike

Ready to connect to an existing access control system.

Voir la gâche

Version mécanique

Pour un usage simple sans connectivité.

Voir la solution

Bike shelter park

Compatible with your ByCommute shelter strategy.

See the bike shelters

FAQ CYLINDRE ÉLECTRONIQUE

The most frequently asked questions before equipping a bicycle shelter.

It allows you to create secure access to a bicycle shelter (badge / smartphone / distance with network box) without setting up an entire cumbersome building access control system.

The cylinder is designed for our ByCommute bike shelters and for configurations compatible with European cylinders. A check of the door dimensions is still recommended before ordering.

Oui. Le fonctionnement local (badge / smartphone à proximité) est possible sans Internet permanent. L'Internet devient nécessaire pour la gestion à distance via boîtier réseau.

Le cylindre cible les badges/cartes RFID MIFARE 13,56 MHz. En pratique, la compatibilité dépend du badge exact (puce, encodage, profil). Une validation sur un échantillon est conseillée avant déploiement massif.

L'alimentation se fait par 2 piles CR2. L'autonomie annoncée est jusqu'à 2 ans selon l'intensité d'usage et les réglages d'exploitation.

Yes, with an IP65 rating and an announced temperature range of -25°C to +65°C, the cylinder is suitable for outdoor use in bike shelters.

Yes, with a network box (4G, WiFi or Ethernet), you can administer remote access according to your architecture and operating rules.

Yes. This is precisely the main use case: creating a bike shelter access that is easy to manage for recurring users, without complicating the operator's daily life.

The behavior depends on the chosen door/handle configuration. In your handleless configuration, you can open directly to the electronic cylinder without closing logic linked to the handle.

You can start with a stand-alone cylinder on a shelter and then deploy across multiple sites. To compare configurations, see all our bike shelters et our closed bike shelters.
