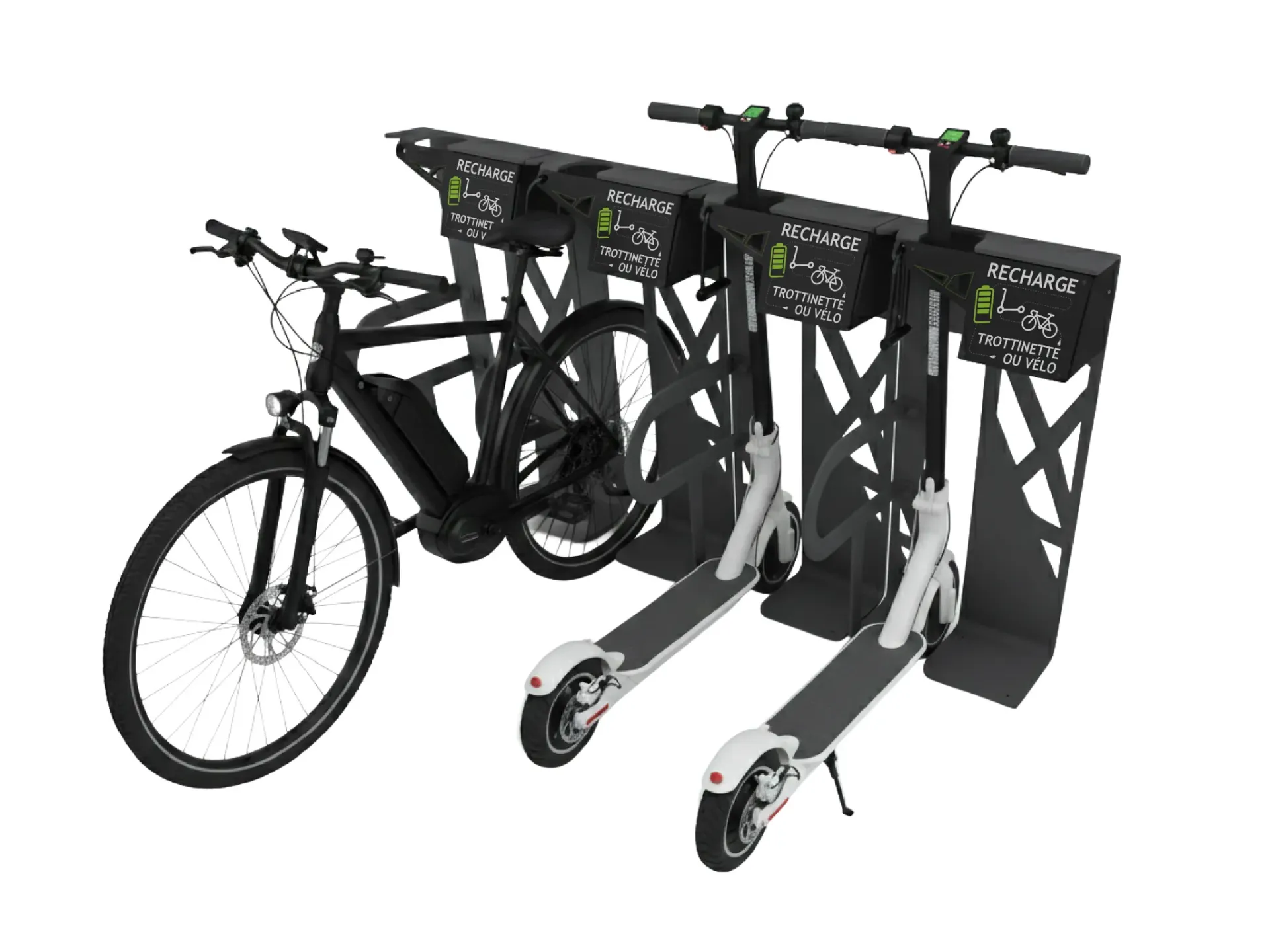

Secure charging station for ELECTRIC SCOOTERS
The Cairn combines parking, power supply and charger protection in a single unit. This charging station for electric scooters is designed so that one padlock secures both the handlebar and charger compartment. No more loose cables, stolen chargers or exposed sockets.
- Universal Compatibility:compatible with a U-lock, a cable lock or scooter handcuffs — the padlock remains that of the user.

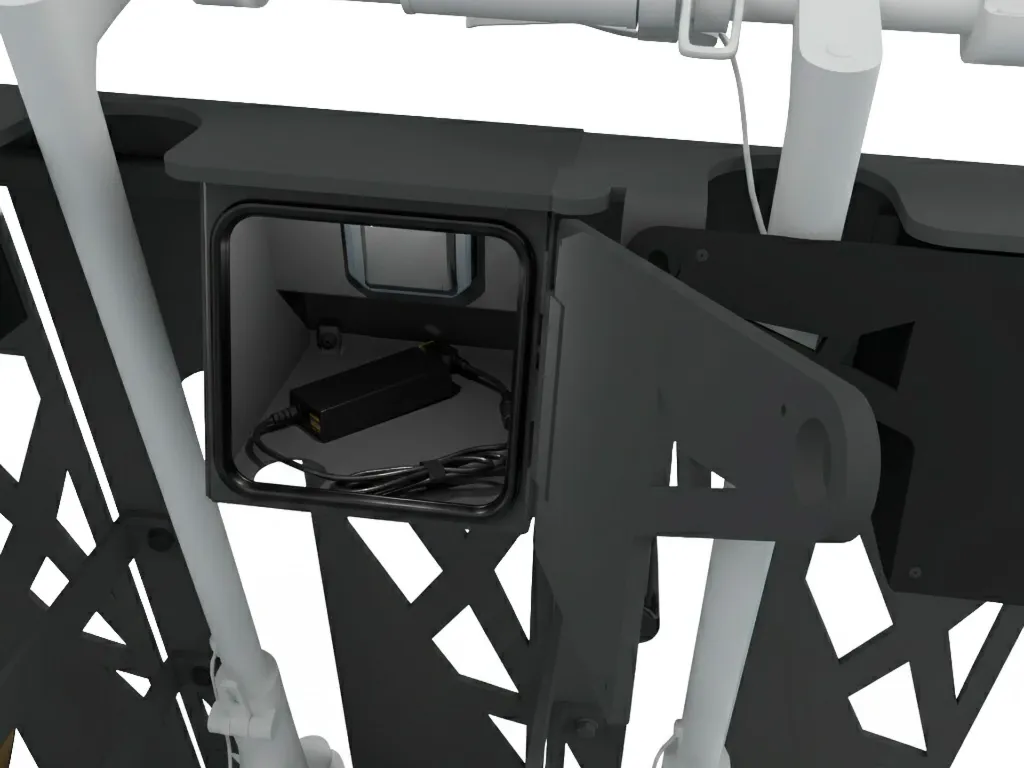

- Protected charger:the closed case protects the charger from theft, bad weather and torn cables.
- IP55 socket:housing protected against jets of water in all directions.
BIKESAND SCOOTERS : one piece of equipment

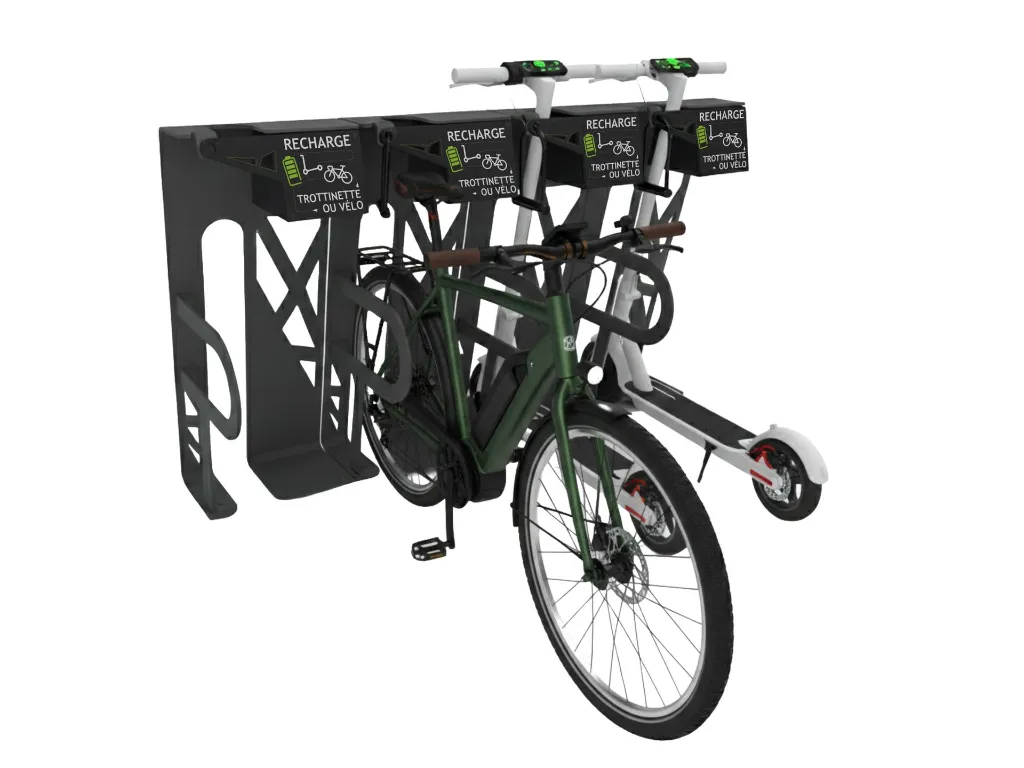

The Cairn is not reserved for scooters. It also accommodates electric bikes with a3-point securing: frame, front wheel and rear wheel. A single solution for electric bikes and scooters on your site.

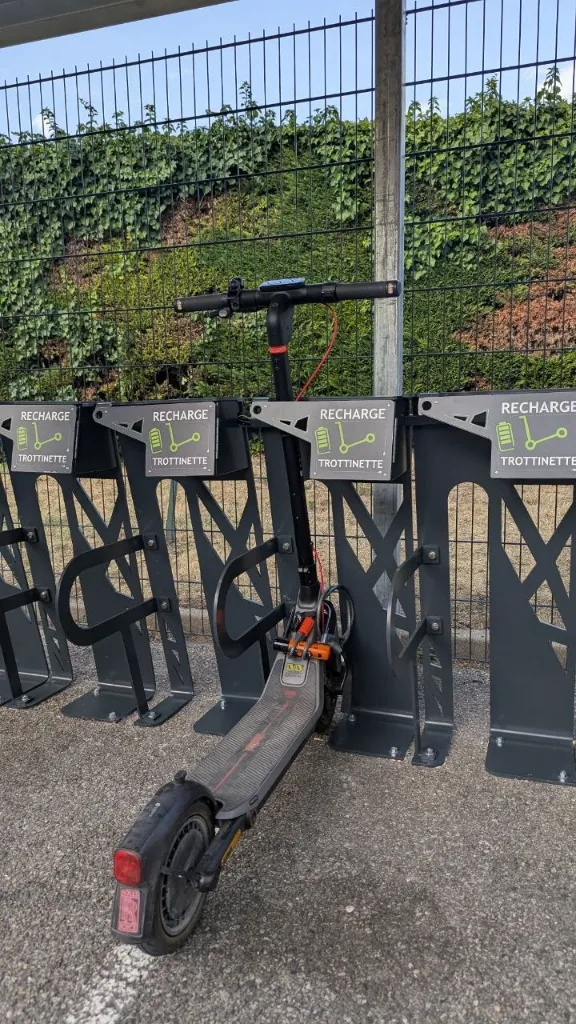

- Compatible with all brands:securing goes through the handlebars, regardless of the model (Xiaomi, Segway, Ninebot, etc.).
- Securing the bike in 3 points:the U-shaped arch allows the frame and the two wheels to be secured simultaneously.
- Mixed sites:ideal for companies, stations, campuses and hotels where bicycles and electric scooters coexist.
Charge outdoors, WITHOUT CONSTRUCTION WORK
Each module has aIP55 waterproof socketin its closed compartment. The user plugs in their own charger, closes the locker with its padlock, and leaves — effortlessly, without risk.

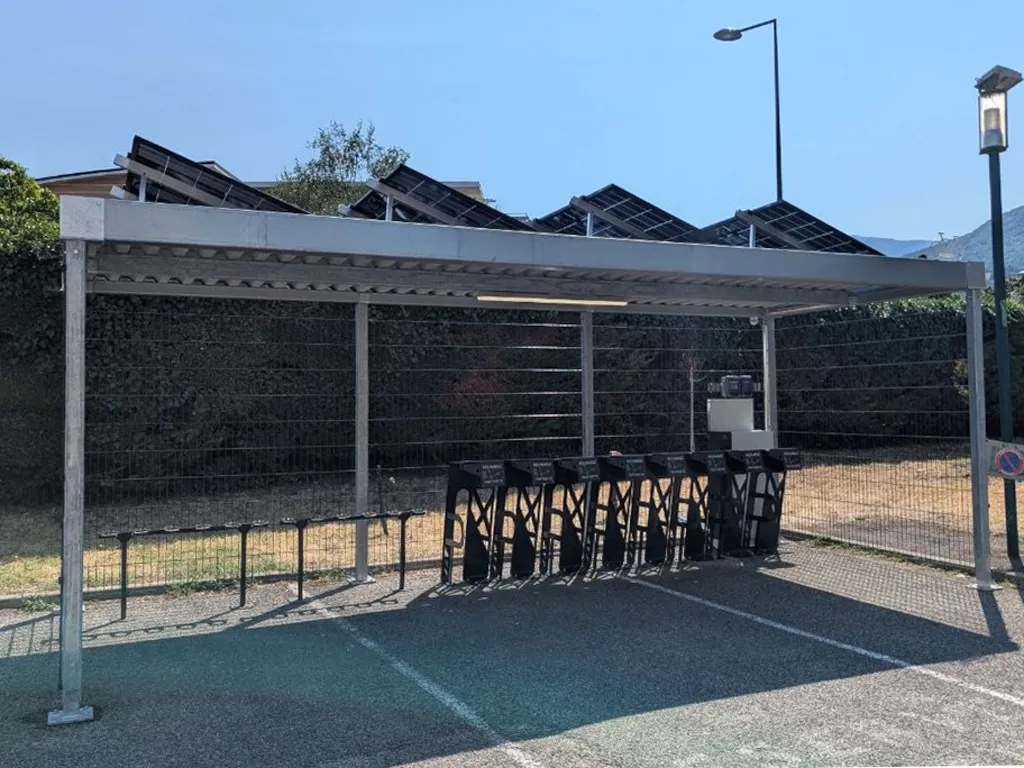

- Solar kit ByCommute:direct connection for 100% autonomous charging. No trenches, no heavy work.
- Electrical network:installation possible with conventional power supply if the site is already equipped.
- Mechanical digital code option:access without personal padlock — for site managers (contact us).
Dimensions & installation

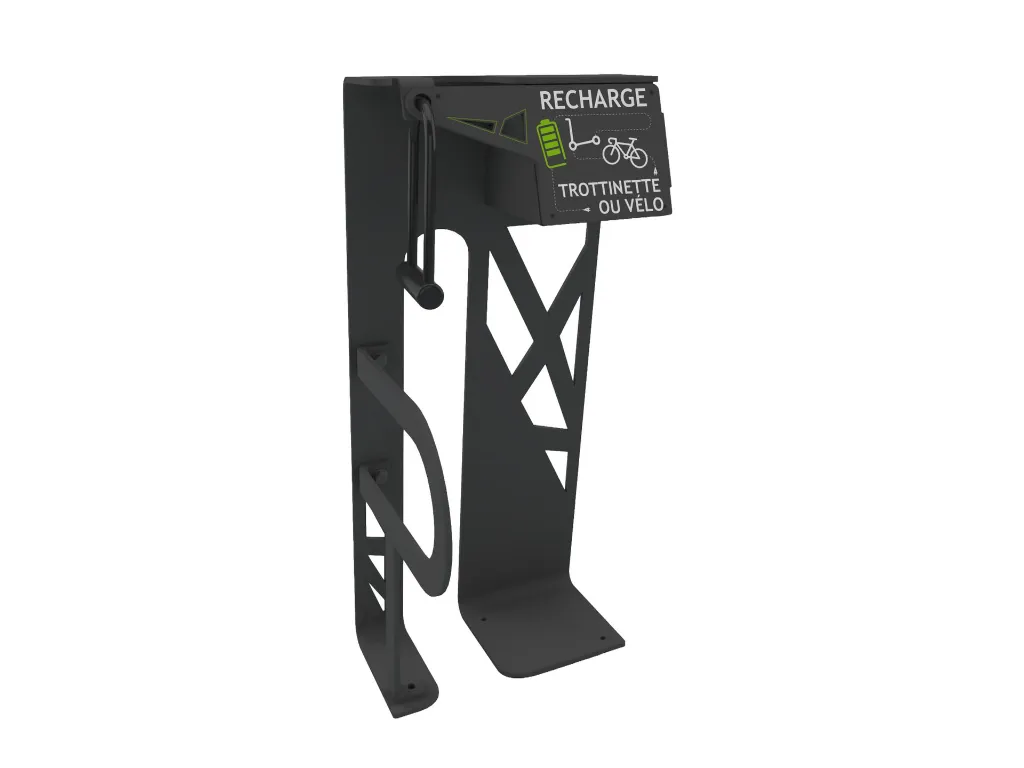

Stackable modules — install the exact capacity you need.
| Configuration | Width (L) | Height (H) | Depth (P) | Ability |
|---|---|---|---|---|
| 3 modules Recommended minimum | 120cm | 95cm | 55cm | 3 spaces |
| 6 modules | 240cm | 95cm | 55cm | 6 spaces |
| Custom made | Attach the desired number of modules according to your space | Quote → | ||
On concrete slab
Recommended fixing with anchor studs directly in concrete. Strongest solution, recommended as a priority.
On coated (bitumen)
Possible installation with studs + chemical sealing, after validation of the state of the coating by ByCommute.
To plan for your establishment
- Flat surface and supporting support (concrete recommended).
- Access to an electrical source or connection to the solar kit ByCommute.
- Delivery in kit on pallet, placed next to the truck.
Technical characteristicsCairn
Robust steel, IP55 waterproofing, multi-padlock security — designed for intensive outdoor use.
Structure
- Painted folded steelRAL 7016
- Thicknesses2.5mm and 3mm
- Rigidity by folding (lasting robustness)
- Designed for intensive outdoor use
- Integrated signage on the case
Security
- U-shaped arch (scooters + bikes)

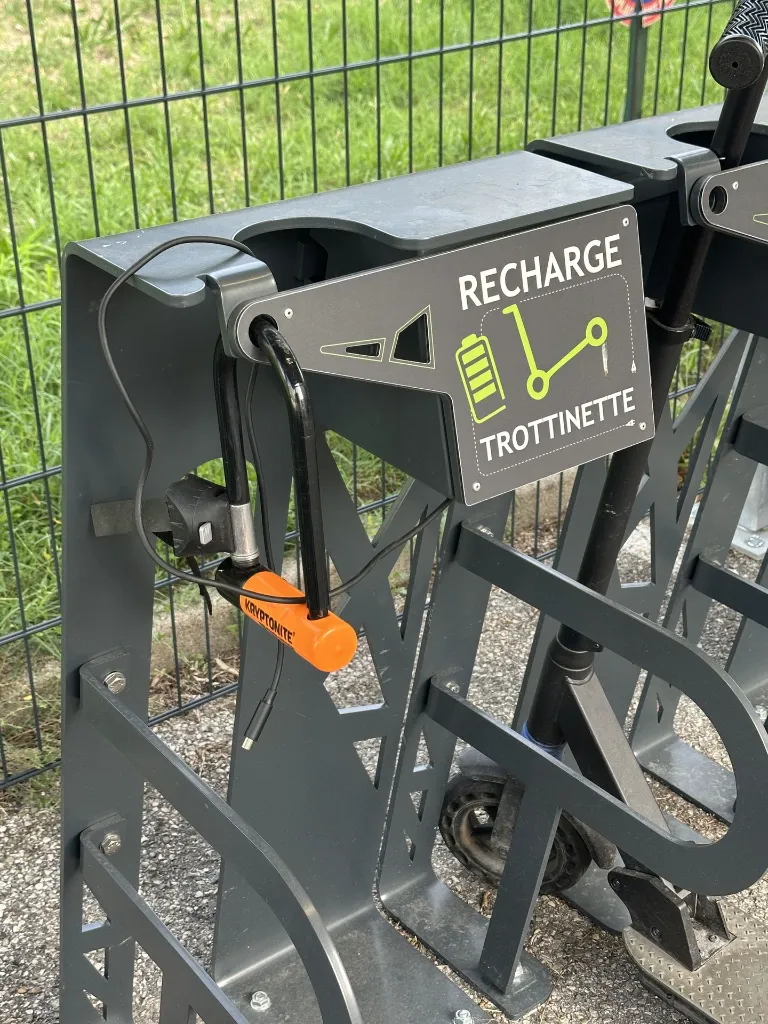

- 1 padlock = handlebar + compartment
- Compatible with U-locks, cables and scooter handcuffs
- Bike: 3-point security possible
- Mechanical digital code optionon quote
Charging
- SocketIP55in waterproof case
- Protected against jets of water (IP55)
- Standard plug (user charger)
- Solar kit compatible ByCommute
- Classic network connection possible
Facility
- Delivered as a kit on a pallet
- Concrete: anchor studs
- Coated: chemical sealing (validation)
- Modules designed to be attached
- No DP or PC (base only)
OPTIONS & ACCESSORIES
Solar kit, integrated charger option, mechanical digital code — adapt the Cairn to your project
Frequently asked questionsCairn
Short, project-oriented answers.
In 3 steps:(1)I park and attach my scooter to the U-shaped arch.(2)I place my charger in the compartment and plug it in.(3)I close the locker with my padlock — which simultaneously locks the handlebars and the magazine compartment. At the end of the day, I pick up the scooter and charger.
The Cairn accepts all types of standard padlocks: U-lock, cable lock and scooter handcuffs. The user usesyour own padlock— no consumables or badges to manage. If you want a solution without a personal padlock, we offer amechanical digital code option(contact us).
Yes. The catch is classifiedIP55: protected against jets of water in all directions and against dust. The compartment case is designed to withstandhigh pressure cleaners. Perfect for outdoor use all year round.
Yes. The Cairn scooter charging base connects directly to the ByCommute solar kit for100% autonomous charging, without trenches or heavy work. Ideal for isolated sites or rapid deployments. It can also be connected to a conventional power supply if the site is already equipped.
Thereconcrete slabis recommended as a priority, with fixing by anchoring studs. Oncoated (bitumen), installation is possible with dowels + chemical sealing, after validation of the state of the coating by ByCommute. In both cases, a flat floor is essential.
No. For a charging base alone (without shelter),no prior declaration or building permitis not required. If the Cairn is integrated into a bicycle or scooter shelter project, the shelter planning rules apply. To be checked according to your project and your municipality.
Yes. Securing is done at the handlebar level (U-shaped arch),regardless of brand or model. Xiaomi, Segway, Ninebot, Inmotion and others: if the scooter has handlebars, it attaches. The user completes with their own padlock or handcuffs.
Yes. The Cairn accommodates electric bikes (all sizes, all frames) with a3-point securingpossible: frame, front wheel and rear wheel. The bike charger is stored in the same closed compartment. Ideal for mixed sites with bikes and scooters.
Yes, it is by design. The Cairn modules are made to beside by sidein order to create a recharge row of the desired capacity. ByCommute recommends a minimum of 3 modules per installation. Contact us to tailor the configuration to your site.
Regulations strictly regulate the presence and charging of electric scooters and bicycles inside buildings, due to the fire risks linked to lithium batteries. Many companies must now offer asecure outdoor charging solution. Read our full article →
A project ofscooter rechargeoutdoors?
Send us your plan or describe your site. We offer you the appropriate Cairn configuration — number of modules, power supply, options.
