A self-supporting bike stand rack for more challenging surfaces

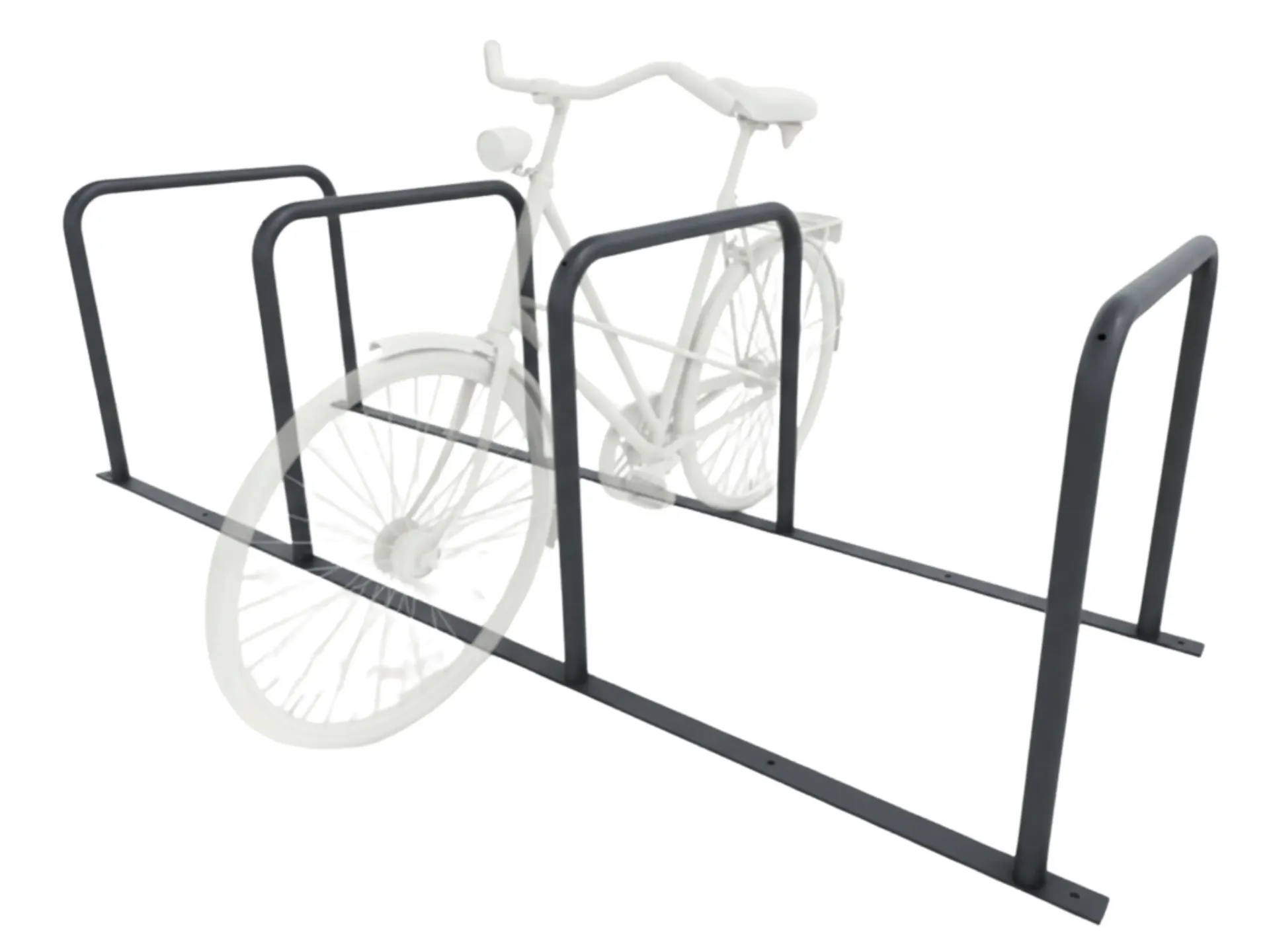

The Oura Rack combines Oura bike stands with flat steel rails to create a self-supporting assembly.
The rail-mounted assembly improves stability, including on less suitable surfaces such as thin asphalt, indoor floors or substrates where individual stands cannot be installed one by one.
In practice: installation is easier, spacing is consistent and the rack can be expanded in modules of 2 to 6 stands.
Easy bike parking with no everyday obstructions
Even with a low rail, parking remains straightforward: bikes can be positioned easily without obstructing one another.
The inverted-U stands retain the essential features: the frame and wheels can be secured with standard bike locks, and the system is suitable for e-bikes. The flat steel rails support the rack without obstructing manoeuvres.
Secure locking
Frame and wheels
Easy parking
standard 820 mm spacing
In practice: less interference between bikes, easier day-to-day use of each space and a layout that remains clear over time.
Hot-dip galvanising and paint for lasting corrosion protection
The Oura Rack uses the same durable protection system as the Oura bike stand, designed for intensive use.
The steel structure is hot-dip galvanised (EN ISO 1461) as standard. For coloured finishes, the powder coating is applied over the galvanised finish to combine a clean appearance with corrosion resistance.
In practice: long service life outdoors, reduced maintenance and a finish that remains neat over time.
Technical information: Oura Bike Stand Rack
Self-supporting rail system • Standard 820 mm centre-to-centre spacing (custom spacing available) • Hot-dip galvanised
Bike stands
- Inverted U, rounded corners
- Round tube Ø 42 mm
- Thickness 3 mm
- S235JR steel
Rails
- Flat steel 50 x 8 mm
- Welded tubular fittings
- Oura stands slid into place and secured
- Self-drilling screws supplied
Installation
- M10 mechanical anchor
- Or M10 chemical anchor
- Depends on ground conditions
- Freestanding setup
Security
- Frame and wheels can be secured
- Vandal resistant
- Enhanced stability (lateral bracing)
- Rounded corners
Dimensions and modules
Standard 820 mm centre-to-centre spacing | Custom spacing available | Single-sided or double-sided layout
| Module | Length (L) | Height (H) | Centre-to-centre spacing | Capacity |
|---|---|---|---|---|
| 2 stands | 1020 mm | 800 mm | 820 mm | up to 2 bikes per stand |
| 3 stands | 1840 mm | 800 mm | 820 mm | up to 2 bikes per stand |
| 4 stands | 2660 mm | 800 mm | 820 mm | up to 2 bikes per stand |
| 5 stands | 3480 mm | 800 mm | 820 mm | up to 2 bikes per stand |
| 6 stands | 4300 mm | 800 mm | 820 mm | up to 2 bikes per stand |
Plan the right capacity
Custom centre-to-centre spacing is also available to suit traffic flows, usable width and the types of bikes being parked.
Oura bike stand rack FAQ
Everything you need to know about a rail-mounted bike stand rack (layout, anchoring and options)
The Oura Rack connects Oura bike stands with flat steel rails to create a self-supporting configuration:
- easier installation on less suitable ground surfaces
- consistent, clearly organised spacing
- modular installation with 2 to 6 stands
For a single stand, see the Oura Bike Stand.
Yes. The standard centre-to-centre spacing is 820 mm, and custom spacing is available to suit your bicycles, traffic flows and site layout.
Yes. The rail supports the assembly without obstructing parking: bikes are easy to position, securing the frame and wheel remains straightforward, and spaces are easy to use.
The rack is suitable for conventional bikes and e-bikes.
Hot-dip galvanising provides long-term protection against corrosion. For painted finishes, powder coating is applied over the galvanised steel for additional durability.
It is well suited to outdoor and intensive use.
The rack can be secured with M10 mechanical or chemical anchors, depending on the ground conditions and project requirements.
We recommend the fixing method best suited to the ground conditions.
The Oura Rack organises and secures bicycle parking but does not provide weather protection. To keep bikes sheltered, add a bike shelter.
We can help you specify the complete configuration for your site.
The Oura Rack: the Oura bike stand in a self-supporting configuration
Hot-dip galvanised • Standard 820 mm or custom centre-to-centre spacing • Modules with 2 to 6 stands
