Compact enclosed wooden bike shelter: Jungle Bike Shelter

Documents

Your selection Your configuration

Your configuration

Model documents

Other model documents 3

Your shelter in detail

Your selection Your configuration
Compact enclosed wooden bike shelter: Jungle Bike Shelter
1

A sturdy structure

Modular load-bearing steel structure. Main beams: de 205 × 120 mm folded profile, 2 mm sheet. Posts: de 80 × 80 mm square tube, 3 mm wall thickness.

2

Hot-dip galvanizing

Steel protected by hot-dip galvanizing in accordance with EN ISO 1461. Zinc forms a corrosion barrier and also protects the steel sacrificially, for long-lasting outdoor use.

Box vélo compact en bois Jungle — plusieurs portes réparties sur la façade pour accéder directement aux vélos.
01

More room for bicycles, less depth

Doors across the entire front provide direct access to the bicycles. The shelter space is used for parking, with no interior aisle. Allow enough clearance outside for opening the doors and maneuvering.

Box vélo compact en bois Jungle — Bardage ajouré en Douglas de Jungle fermé compact.
02

Naturally durable heartwood

Le bois de cœur du Douglas résiste naturellement aux champignons responsables de la pourriture, sans traitement de préservation. Une pose hors contact du sol, ventilée et favorisant l’écoulement de l’eau préserve cette durabilité. Le bois prend naturellement une teinte grisée en extérieur.

Box vélo compact en bois Jungle — Les gestes du configurateur montrent l’utilisation d’une clé, d’un code commun, d’un code personnel et d’un badge sur une porte peinte RAL 7016, puis son ouverture avec un mouvement continu de caméra.
03

A locking system suited to your users

Key, mechanical keypad, electronic keypad, or electronic cylinder: the right choice depends on your users and how you want to manage access.

Box vélo compact en bois Jungle — Vue extérieure d’un Jungle fermé compact installé sur un parking, avec bardage bois ajouré et portes fermées.
04

Keep the parking area in view

The spacing between cladding slats lets light in and allows views through the walls.

Box vélo compact en bois Jungle — Rendu 3D d’un Jungle fermé compact avec porte ouverte et vélo stationné à l’intérieur.
05

Restrict access

The door lets you restrict access to the bike parking area with a lock suited to users and site operations.

06

Walls that cannot be dismantled from the outside

The wall fixings are protected from the outside. The cladding remains attached to the structure, with no removable screws accessible from that side.

Product description

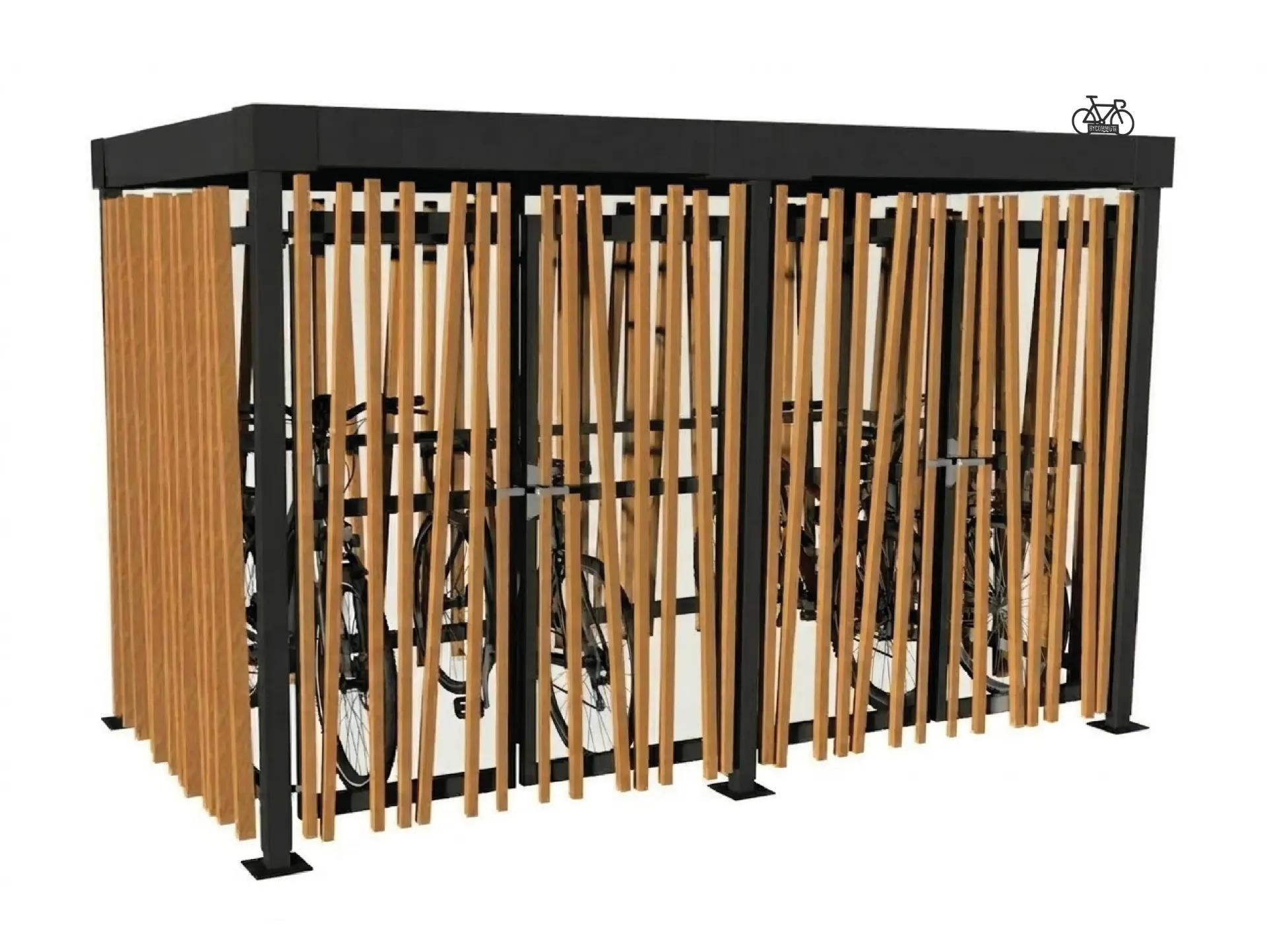

Jungle is an enclosed bike shelter with open Douglas fir slats. Their spacing keeps bikes and users visible from outside. Doors along the front provide direct access to bikes, with no internal aisle.

  • Naturally durable heartwood. Douglas heartwood naturally resists rot-causing fungi without preservative treatment. Ventilated installation, away from ground contact, helps preserve its durability. The wood naturally turns gray over time.
  • More room for bicycles, less depth. Doors across the entire front provide direct access to the bicycles. The shelter space is used for parking, with no interior aisle. Allow enough clearance outside for opening the doors and maneuvering.
  • Access suited to your users. Key, mechanical keypad, electronic keypad or electric strike: choose the locking system to suit the door and how your site operates.
  • Keep the parking area in view. The spacing between cladding slats lets light in and allows views through the walls.
  • Modular in both dimensions. From 2 to 30 m in length and depth, by combining modules, subject to the layout and structural assessment. Complex shapes are available on quotation.
Useful information and links
15-year warranty Galvanized structure and steel sheet View the terms
15 years

Galvanized structure and steel sheet roof

Galvanized structure and fixed metal parts, excluding roofing: the warranty covers manufacturing defects or corrosion affecting their strength, safety, or proper operation.

Roof steel sheet: covered against perforation by corrosion.

5 years

Wood

Covers rot that compromises structural integrity.

5 years

Powder coating

Covers abnormal blistering or peeling.

Mechanical, electrical, and solar equipment is covered by the respective manufacturers’ warranties, as specified in the quote.

Natural changes in appearance—wood turning gray, patina, and gradual color change—are not covered when they do not affect protection, strength, or use.

These warranties apply under the use, maintenance, and exposure conditions specified in the quote.

Overview of the shelter, then a view from beneath the steel sheet roof: durability, no yellowing, and warranty against perforation by corrosion.

Roof

A steel sheet roof built to last

A roof that does not yellow. Steel ribs stiffen the roof and guide rainwater runoff.

15-year warranty against perforation caused by corrosion, subject to the terms set out in the quotation.

Assembly and expansion

Abri vélo : Vue de l’abri puis gros plan sur le coulissement vertical du pied réglable.

Adjustable feet for sloping ground

Height-adjustable feet let you adapt the shelter to the ground. Supports and anchors are specified for your site.

Abri vélo : Parcours de l’eau de pluie de la toiture vers les gouttières et les poteaux.

Water drains through the posts

The gutters collect rainwater. It then runs down through the posts to the outlets provided for connection to the site drainage.

Abri vélo : Agrandissement de l’abri de quatre à six mètres par ajout de pièces et réemploi du retour latéral.

A shelter that grows with your needs

Start with the spaces you need. If demand grows, add a bay and the additional parts, reusing the components from your shelter where possible.

What surface should the shelter be installed on?

Base plate secured to a continuous concrete slab, with a second post at the rear

Suitable support

A continuous slab beneath the shelter

The base plates are anchored to a concrete slab sized for your project.

Our civil works service

Options for your shelter

Loading options…

Choose what you would like us to handle

On an 8-meter shelter, wood, glass, and metal walls can be replaced individually.

A more specific project?

Multiple cladding options to meet your constraints

Configure my shelter
The shelter extends from 4 to 6 and then 8 meters, with L-shaped and then U-shaped returns around a courtyard with a fountain.

Depending on your layout

A straight, L-shaped, or U-shaped shelter

Add side returns to follow the shape of the site and organize parking. Explore your layout in the configurator, or let us work it out with you.

Configure my shelter

On site

Some ByCommute installations

All our projects
Illustration of a workshop for manufacturing and storing metal structures

Manufacturing and installation

ByCommute, manufacturer
bike shelters

ByCommute designs and manufactures bike shelters. From our warehouses in Grenoble, we support projects throughout France, from shelter selection through installation.

Warehouses
Grenoble
Installation
Throughout France
Installation network
More than 50 installers certified by ByCommute.

Our customers say it best

Read Google reviews ↗

Loading Google reviews…

Reviews of ByCommute projects across all models.

Frequently asked questions

How many bicycles can be parked, depending on shelter length?

Here are some guidelines for Enclosed Compact Jungle , with a depth of 2,5 m . Capacity depends on the chosen layout.

Enclosed Compact Jungle — indicative capacity for 2,5 m deep
Shelter length Bike stands 1 tier Racks 2 tiers
2 m To be assessed 4 bicycles
2,5 m To be assessed 8 bicycles
4 m 6 bicycles 16 vélos
6 m 12 vélos 24 vélos
8 m 16 vélos 36 vélos
10 m 22 vélos 46 vélos
12 m 26 vélos 56 vélos

Examples calculated using the stands Oura Rack / Cyclo , for standard bicycles. The double-decker setup requires the tall version (post height: 2,85 m). Doors, passageways, layout, and cargo bikes can affect capacity. Use the configurator to check your exact layout.

Why does the compact model have several doors across the front?

Each opening gives direct access to its corresponding parking area. This means no interior aisle is needed: the limited depth can be used for bicycles. Allow maneuvering space in front of the doors.

Does Jungle conceal the bicycles?

No. Jungle cladding has openings, so the parking area remains visible. Bosquet offers more opaque walls.

What locking system should I plan for?

Specify whether you want standalone access or connection to the site access control system. Check the selected door and device against the project.
