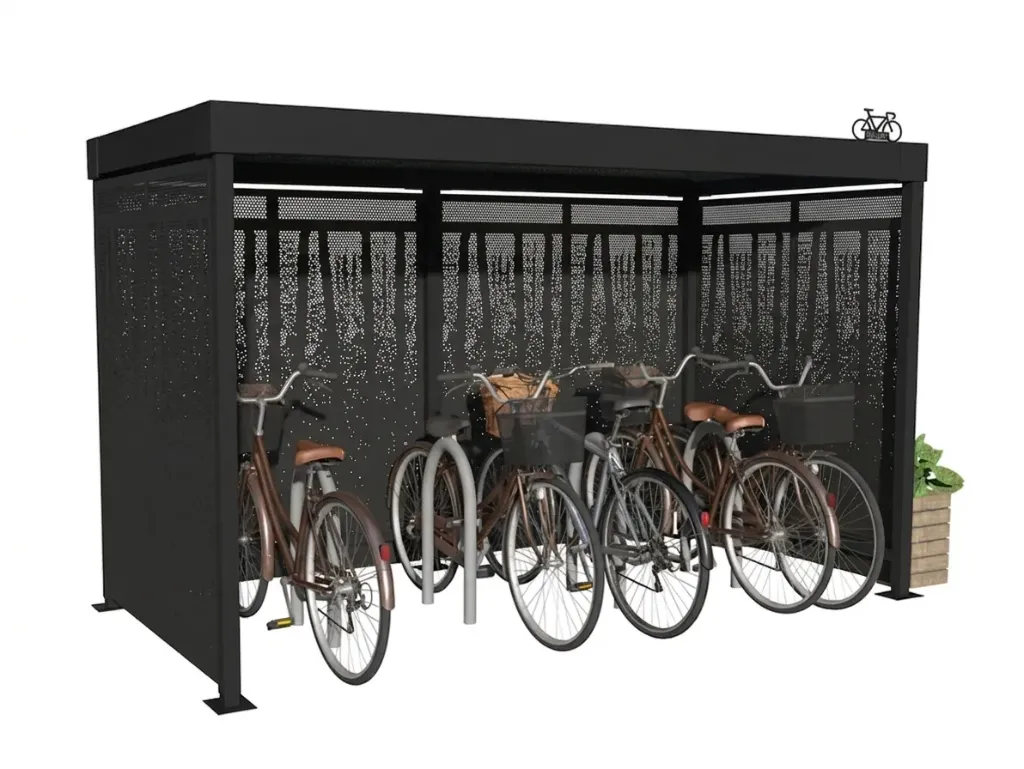

Open metal bike shelter: Rachais Bike Shelter

Documents

Your selection Your configuration

Your configuration

Model documents

Your shelter in detail

Your selection Your configuration
Structure et finition — Open metal bike shelter: Rachais Bike Shelter
1

A sturdy structure

Modular load-bearing steel structure. Main beams: de 205 × 120 mm folded profile, 2 mm sheet. Posts: de 80 × 80 mm square tube, 3 mm wall thickness.

2

Hot-dip galvanizing

Steel protected by hot-dip galvanizing in accordance with EN ISO 1461. Zinc forms a corrosion barrier and also protects the steel sacrificially, for long-lasting outdoor use.

Abri vélo en acier Rachais ouvert — un bardage en acier.
01

Steel walls built to last

Sheet steel cladding forms a rigid enclosure around the parking area. Hot-dip galvanizing protects the steel from corrosion; powder coating adds the selected color.

Abri vélo en acier Rachais ouvert — Vue à hauteur humaine autour de Rachais : une personne et des vélos à l’intérieur, puis les faces perforées depuis l’extérieur.
02

See silhouettes while keeping bicycles discreet

Through the perforations, you can tell someone is present without seeing the bicycles directly or in detail. Visibility varies with distance, angle, and light.

Abri vélo en acier Rachais ouvert — Bardage perforé en acier du Rachais ouvert.
03

Light and air pass through the perforations

The openings in the cladding let light in and allow air to circulate between the inside and outside.

Abri vélo en acier Rachais ouvert — Vue à hauteur humaine : vélo au centre, cotes animées du vélo et de la toiture au sol, pluie à l’extérieur.
04

An open shelter that protects bicycles from rain

The roof covers the full length of the bicycle and protects it from rain, even without a front door. Its depth leaves some clearance at both ends. Protection varies with wind and site layout.

Abri vélo en acier Rachais ouvert — Rachais peint RAL 7016 : panneau et fixations vus uniquement depuis l’extérieur.
05

Walls that cannot be dismantled from the outside

The wall fixings are protected from the outside. The cladding remains attached to the structure, with no removable screws accessible from that side.

Product description

Rachais is a bike shelter with perforated steel cladding. The panels screen bikes from view while allowing air through and keeping silhouettes visible.

  • Steel walls built to last. Sheet steel cladding forms a rigid enclosure around the parking area.
  • See silhouettes while keeping bicycles discreet. Through the perforations, you can tell someone is present without seeing the bicycles directly or in detail. Visibility varies with distance, angle, and light.
  • Modular in both dimensions. From 2 to 30 m in length and depth, by combining modules, subject to the layout and structural assessment. Complex shapes are available on quotation.
  • Steel roof with a 15-year warranty. 15-year warranty against perforation caused by corrosion, subject to the terms set out in the quotation.
Useful information and links
15-year warranty Galvanized structure and steel sheet View the terms
15 years

Galvanized structure and steel sheet roof

Galvanized structure and fixed metal parts, excluding roofing: the warranty covers manufacturing defects or corrosion affecting their strength, safety, or proper operation.

Roof steel sheet: covered against perforation by corrosion.

5 years

Wood

Covers rot that compromises structural integrity.

5 years

Powder coating

Covers abnormal blistering or peeling.

Mechanical, electrical, and solar equipment is covered by the respective manufacturers’ warranties, as specified in the quote.

Natural changes in appearance—wood turning gray, patina, and gradual color change—are not covered when they do not affect protection, strength, or use.

These warranties apply under the use, maintenance, and exposure conditions specified in the quote.

Overview of the shelter, then a view from beneath the steel sheet roof: durability, no yellowing, and warranty against perforation by corrosion.

Roof

A steel sheet roof built to last

A roof that does not yellow. Steel ribs stiffen the roof and guide rainwater runoff.

15-year warranty against perforation caused by corrosion, subject to the terms set out in the quotation.

Assembly and expansion

Abri vélo : Vue de l’abri puis gros plan sur le coulissement vertical du pied réglable.

Adjustable feet for sloping ground

Height-adjustable feet let you adapt the shelter to the ground. Supports and anchors are specified for your site.

Abri vélo : Parcours de l’eau de pluie de la toiture vers les gouttières et les poteaux.

Water drains through the posts

The gutters collect rainwater. It then runs down through the posts to the outlets provided for connection to the site drainage.

Abri vélo : Agrandissement de l’abri de quatre à six mètres par ajout de pièces et réemploi du retour latéral.

A shelter that grows with your needs

Start with the spaces you need. If demand grows, add a bay and the additional parts, reusing the components from your shelter where possible.

What surface should the shelter be installed on?

Base plate secured to a continuous concrete slab, with a second post at the rear

Suitable support

A continuous slab beneath the shelter

The base plates are anchored to a concrete slab sized for your project.

Our civil works service

Options for your shelter

Loading options…

Choose what you would like us to handle

On an 8-meter shelter, wood, glass, and metal walls can be replaced individually.

A more specific project?

Multiple cladding options to meet your constraints

Configure my shelter
The shelter extends from 4 to 6 and then 8 meters, with L-shaped and then U-shaped returns around a courtyard with a fountain.

Depending on your layout

A straight, L-shaped, or U-shaped shelter

Add side returns to follow the shape of the site and organize parking. Explore your layout in the configurator, or let us work it out with you.

Configure my shelter

On site

Some ByCommute installations

All our projects
Illustration of a workshop for manufacturing and storing metal structures

Manufacturing and installation

ByCommute, manufacturer
bike shelters

ByCommute designs and manufactures bike shelters. From our warehouses in Grenoble, we support projects throughout France, from shelter selection through installation.

Warehouses
Grenoble
Installation
Throughout France
Installation network
More than 50 installers certified by ByCommute.

Our customers say it best

Read Google reviews ↗

Loading Google reviews…

Reviews of ByCommute projects across all models.

Frequently asked questions

How many bicycles can be parked, depending on shelter length?

Here are some guidelines for Open Rachais , with a depth of 2,5 m . Capacity depends on the chosen layout.

Open Rachais — indicative capacity for 2,5 m deep
Shelter length Bike stands 1 tier Racks 2 tiers
2 m To be assessed 4 bicycles
2,5 m 4 bicycles 8 bicycles
4 m 6 bicycles 16 vélos
6 m 12 vélos 24 vélos
8 m 16 vélos 36 vélos
10 m 22 vélos 46 vélos
12 m 26 vélos 56 vélos

Examples calculated using the stands Oura Rack / Cyclo , for standard bicycles. The double-decker setup requires the tall version (post height: 2,85 m). Doors, passageways, layout, and cargo bikes can affect capacity. Use the configurator to check your exact layout.

What can you see through Rachais cladding?

The perforations filter views: silhouettes remain visible while bicycles are less exposed than behind widely spaced cladding. Visibility varies with angle, distance, and light; the open entrance remains visible from the front.

Is an open shelter enough to secure bicycles?

It protects parked bicycles from the weather but does not restrict access. Provide stands that allow bicycles to be locked, and choose an enclosed shelter if you need to control entry.

Can I adapt the dimensions to my site?

Choose the length, depth, and height from the formats available for this model. The layout also accounts for access, bicycles, and maneuvering.
